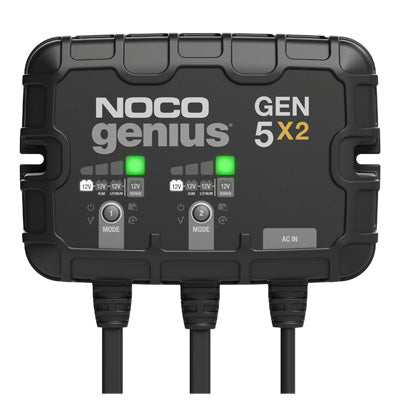

NOCO Genius GEN5X2  12V 2-Bank, 10-Amp On-Board Battery Charger
  • SKU: TCE-GEN5X2

NOCO Genius GEN5X2 12V 2-Bank, 10-Amp On-Board Battery Charger

  • Vendor: NOCO
  • Barcode:
DESCRIPTION

2-Bank, 10-Amp On-Board Battery Charger (5-Amps Per Bank), Battery Maintainer, and Battery Desulfator with Temperature Compensation

Meet the all-new GEN5X2. Similar to our GENM2, only better. It's 27% smaller and delivers 43% more power. It's one of the best performing onboard marine battery chargers we have ever made. A two-bank onboard battery charger rated at 10-amps (5-amps per bank) for 12-volt batteries, including marine, boat, starter, and deep-cycle batteries. Independently charge and control each battery bank with selectable charging modes - including 12V, 12V AGM, 12V Lithium, and 12V Repair Mode - for all types of lead-acid and lithium-ion batteries.
  • Multiple-banks- A two-bank on-board battery charger rated at 10-amps (5-amps per bank) for 12-volt batteries, including marine, boat, starter, and deep-cycle batteries.
  • Charging modes - Independently charge and control each battery bank with selectable charging modes - including 12V, 12V AGM, 12V Lithium, and 12V Repair Mode - for all types of lead-acid and lithium-ion batteries.
  • Enjoy precision charging - An integrated thermal sensor detects the ambient temperature and alters the charge to eliminate over-charging in hot climates and under-charging in cold climates.
  • Charge dead batteries - Charges batteries as low as 1-volt. Or use the all-new force mode that allows you to take control and manually begin charging dead batteries down to zero volts.
  • Restore your battery - Automatically detects battery sulfation and acid stratification to restore lost battery performance for stronger engine starts and extended battery life.
  • Beyond maintenance - It's not just a trickle charger, it's an advanced battery maintainer. A fully-automatic, worry-free battery charger for everyday use - 24/7 - with zero overcharge.
  • Redefined mounting - A simplified mounting system allows for quick and easy installations in any direction - even up-side-down - with an integrated anti-vibration backing to isolate shock, vibration, and noise.
  • Designed for water - A fully-sealed and waterproof onboard battery charger with an ingress protection rating of IP68, but has survived brutal life cycle testing, including thousands of hours underwater.

Technical Specifications

What's In the Box

GEN5X2 On-Board Battery Charger
(2) Self-Tapping Screws
User Guide & Warranty Information

Operating Requirements

Line Voltage: 120V to 240V AC
Frequency: 50Hz to 60Hz
Operating Temperature: -4° to 104° F (-20° to 50° C)
Storage Temperature: -22° to 140° F (-30° to 60° C)
Relative Humidity: 0 to 95% Non-Condensing

Charging

Current: 5 Amps DC x 2 Banks
Voltages: 12V
Chemistry: Lead-Acid and Lithium
Types: Wet, Gel, MF, CA, EFB, AGM, Lithium
Battery Capacity Range: Up to 120 Amp-Hours
Maintenance: All Battery Sizes

Power

Consumption: 145 Watts (Max), 2 Banks

Protection

IP Rating: IP68

Safety

Short-Circuit: Yes
Open-Circuit: Yes
Overheating: Yes
Overcharge: Yes
Spark-Proof: Yes
Reverse Polarity: Yes

Size

Height: 5.6 Inches (142.4mm)
Width: 7.0 Inches (177mm)
Depth: 2.2 Inches (56.0mm)
Weight: 4.17 Pounds (1.9kg)

Cord Management

DC Cable + Eyelet Length: 72 Inches (182cm)
DC Cable Size: 16 AWG
DC Fuse Size: 7.5 AMP MINI ® Blade Fuse
AC Cable Length: 72 Inches (182cm)
AC Cable Size: 18 AWG
Oil, gas, grease, water, chemical, UV, abrasion resistant



CLICK HERE TO VIEW PDF
