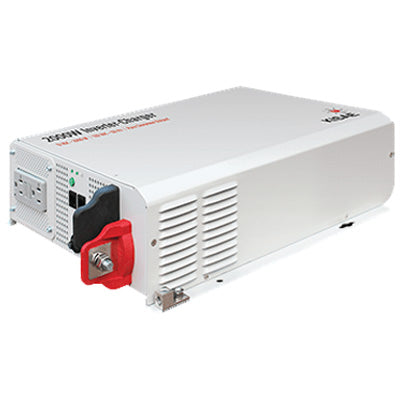

KISAE BIC122080 2000W / 80A Inverter-Charger
  • SKU: DC-BIC122080

KISAE BIC122080 2000W / 80A Inverter-Charger

DESCRIPTION

High Frequency Series

BIC inverter-chargers are premium performance, high-frequency power products that wed a high wattage true sinewave power inverter with a high amp smart battery charger. Flexibility is key with input voltage versions available in either 12 volt DC for 12V batteries or 24 volt DC for 24V batteries; and output versions of either 120 volt AC or 230 volt AC.

Features include:

  • Combines a 2000W DC-AC inverter with a 80A multi-stage charger plus transfer switch.
  • True sinewave output identical to or better than power provided by the local power grid.
  • Multi-stage charging ensures batteries are charged to their maker’s recommendations.
  • Variable settings offered for Gel, Flooded, AGM, and Lithium battery compatibility.
  • High start-up surge rated at twice the continuous power rating.

Features And Benefits

  • High wattage power inverter • True sine wave output
  • 120Vac output versions available
  • 230Vac output versions available
  • High amperage battery charger
  • Micro-processor controlled
  • Regulatory Approved to cETus standards for North America, and CE standards for EU, UK, AU and NZ
  • Multi-stage charging algorithm
  • Charges a variety of battery types
  • Lightweight compact design
  • Built-in CAN BUS communication
  • Accepts AC or DC input sources
  • Built-in load sense to minimize battery drain
  • Comes with remote panel included for unit setting and monitoring

Dimensions (L x W x H):

BIC122080: 15.4“ × 11.9” × 4.2” (391 x 302 x 106mm)

Weight:

BIC122080: 17.6 lbs. / 8.0 Kg



CLICK HERE TO VIEW DATASHEET



AC Output Power (Continuous) 2000W
AC Output Power (Peak – 1 second) 4000W
AC Output Voltage/Frequency 120VAC / 60 Hz
AC Output Current 16.6A
AC Output Current (Peak) 40A max (with max power limitation)
AC Output Waveform True Sinewave (<5% THD)
Peak Eciency 90%
Input Voltage (nominal) 12.5Vdc
Input Voltage Operation Range 10.5 – 16.5Vdc
Input Standby Current <3.0A
Input Standby Current (Power Save) < 0.6A
Charger Voltage Range 13.8 – 14.8V (Selectable)
Float Voltage Range 13.0 – 14.0V (Selectable)
Charger Current 10 – 80A
Charger Battery Type Gel, Flooded, AGM, Lithium, Programmable, Power Supply
Charging Stages Check, Bulk, Absorption, Float, Recharge
Recharge Voltage Range 13.0 – 14.0 V (Selectable)
Recharge Timer 7-days (automatic)
Power Sharing Reduce Charger Current when heavy AC Load is connected
AC Input Voltage/Frequency 120 VAC (Accept MSW AC Input)
AC Input Voltage Acceptance Range: 108 – 132 VAC
Transfer Time < 30ms
Transfer Relay Rating 30A
AC Input Port Hardwire 30A Heavy Duty Connector
AC Output Port Hardwire 30A Heavy Duty Connector
AC Input Socket NEMA 5-20 GFCI (Optional)
Battery Input Undervoltage Shutdown: 10.5 – 12.0Vdc (with dynamic control)
Battery Input Undervoltage Warning: 11.0 – 12.5Vdc
Battery Input Undervoltage Recovery: N/A
Battery Input Overvoltage Shutdown: 16.5Vdc
Inverter Overload Warning/Shutdown: 1800W / 2200W
Unit Over-temp Warning/Shutdown: Yes
Power On/O Switch Yes (Push Button)
Indicator 3 LEDs (Power, AC Output, Unit Status)
Remote Display Port For Remote Display Panel use
Battery Temperature Sensor Port: For use with Battery Temperature Sensor (BTT)
Ignition Start Port For use with Vehicle ‘ACC’ signal
Indicator (LED) Power, AC Output, Unit and Battery Status Display Type
Numerical Display Function Battery Voltage, AC Power, DC Current
Graphics Display Function AC Bypass, Battery Power, AC Input, Battery Status Warning/Fault Code
Communication CAN BUS, Bluetooth (optional), LIN (optional)
USB Port Unit software upgrade
Markings cETLus
Conformance UL & CSA Standards
EMI/EMC FCC Part 15 Class B
Dimensions (L x W x H) 15.4“ × 11.9” × 4.2” (391mm x 302mm x 106mm)
Net Weight 17.6 lbs. / 8 kg
