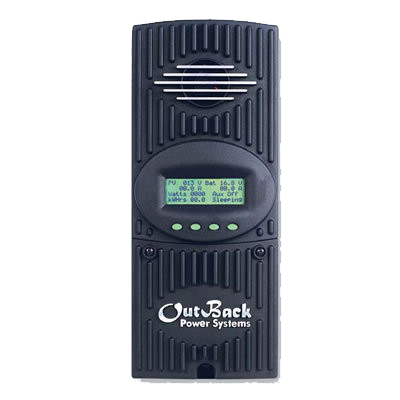

OUTBACK FM60 CHARGE CONTROLLER
The Outback line of Smart Controllers
MPPT CHARGE CONTROLLER – 80 AMP 12, 24, 48, 60 VDC BATTERY – 150 VOC MAX PV ARRAY (COLD)
These Maximum Power Point Tracking charge controllers enable your PV system to achieve its
highest possible performance. They permit the use of a higher output voltage PV array with a lower
battery voltage – such as charging a 24 VDC battery with a 48 VDC PV array. This reduces wire size and power loss
from the PV array to the battery location while maximizing the system’s performance.
Rated for up to 80 amps of DC output current, they can be used with battery systems from 12 to 60 VDC with a PV open circuit voltage as high as 150 Voc. The set points are fully adjustable to allow use with virtually any battery type, chemistry, and
charging profile. The OutBack FM60 and FM80 come standard with an easy to use and understand display. The
four line, 80 character, backlit LCD display is used for programming and monitoring of the system’s operation
including built-in Data Logging with 64 days of memory.
